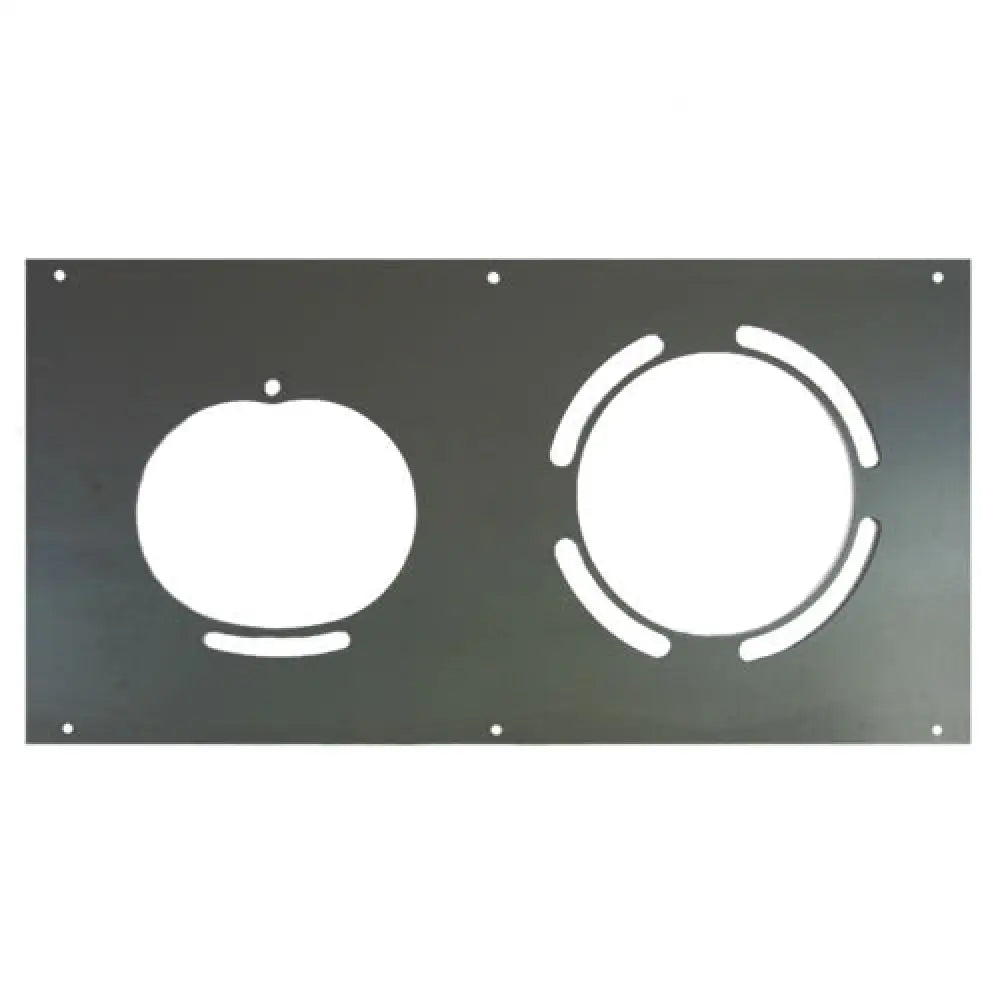

Vertical Shaft Generator Bracket
For use with our Vertical Shaft Belt Drive Generator Project
Build a generator from a common-style lawn mower engine with our new Vertical Shaft Generator Bracket! Universal mounting pattern fits all lawn mower engines. Integral belt adjustment slot and alternator mounting provisions (same integral belt adjustment slot and alternator mounting provisions as our horizontal design).
Bracket Details
- 24" long x 12" wide
- 11" from center of motor shaft to center of alternator shaft with belt adjusted in center
- 6.6" between standard 2 bolt mounting bolts for GM 10si alternator
- Made from 10 gauge steel
- Available in Bare Steel (no finish)
Optional Items
- 2.5" Pulley for Engine (Cast Iron, 3/16" Key Way, 7/8" Shaft, "A" Style Industrial)
- 30" A-Style Industrial Belt (for Vertical Shaft Project and 2.5" Cast Iron Pulley)
